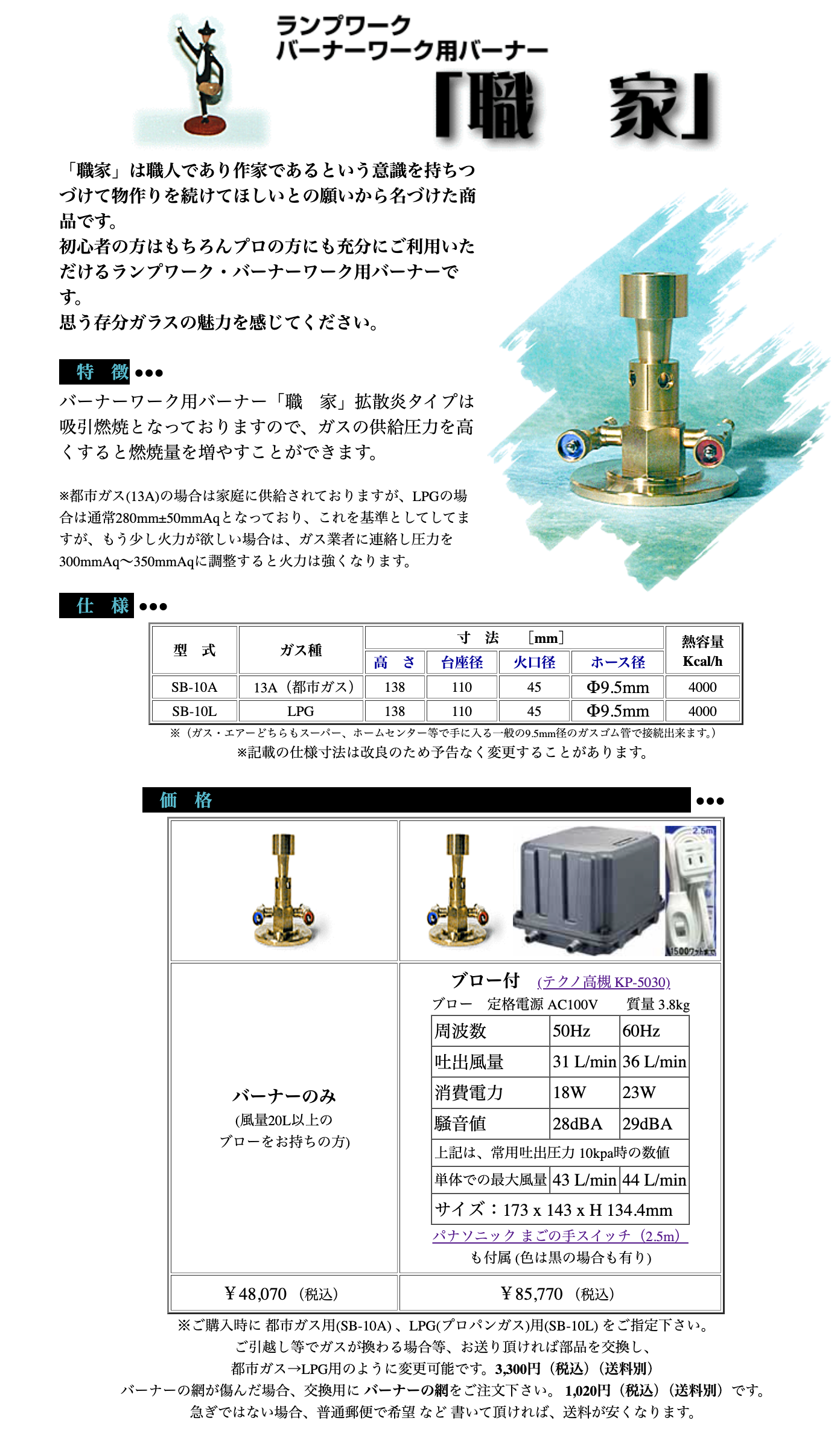

Burner "Shokuya" Diffusion flame type Made in Japan

Description

*Please specify city gas or LPG (propane) use when ordering.

●How to use

Valve adjustment guideline

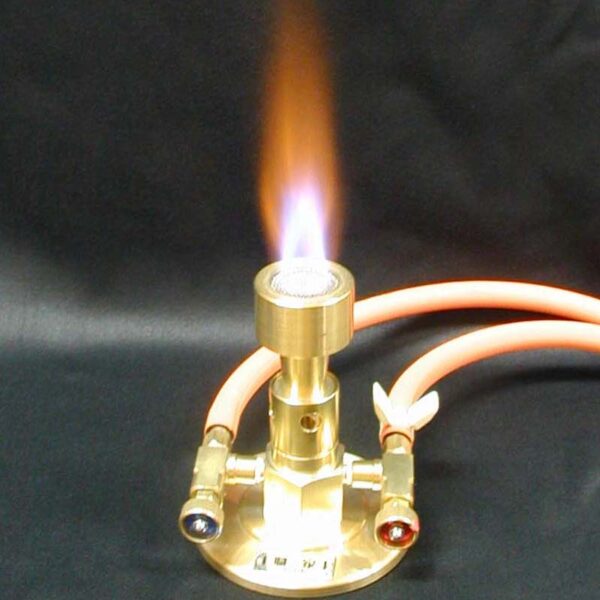

To the naked eye, the area around the blue fire was almost transparent,
In the photo it appears orange.

1. Connect the air blower and air nozzle (blue) with a gas rubber tube. (Connect the air blower to an electrical outlet.)
2. Connect the gas main cock and the gas nozzle (red side) with a rubber gas tube.
(Both can be connected with standard 9.5mm rubber gas tubing available at supermarkets, home improvement centers, etc.)
3. Keep the air adjustment damper more than half open
4. Turn the gas valve slightly to the left to ignite, then turn it approximately 120° (approximately 1/3 of the way).
5. Slowly turn the air valve to the left, approximately 450° (approximately 1 and 1/4 revolutions).
6. Adjust both valves to prevent soot from being produced.
(Too little air will cause soot, too much air will cause the flame to go out.)
7. If cold glass is suddenly exposed to a flame, it may break and fragments may fly.
Heat the glass rod (colored rod) near the flame, then place it over the flame and do burner work.
(Working below the flame will produce soot.)
8. After completing the work, turn the red gas valve to the right to close it completely and also close the gas main cock.
9. To cool the burner, run air through it for a few minutes.
Turn the blue air valve clockwise to close it completely and turn off the air blower (air pump).

(The above valve adjustments are a guideline for using the Burner Craftsman diffusion flame type, blow, LP gas, which is sold as a set by our company. Adjust the heat to your liking.)
